Microsoft Dynamics 365 Connector for Jira

1

Install the app

A site admin or organization admin installs the app from Atlassian Marketplace and then opens the app configuration from Jira administration.

2

Register a confidential Microsoft Entra app

Create a single-tenant app registration for Dataverse server-to-server authentication, then copy the Application (client) ID and Directory (tenant) ID.

3

Create a client secret

Generate a client secret and save the secret value. The value is shown only once in the Microsoft portal.

4

Create the Dataverse application user

In the Power Platform admin center, add the app registration as an application user in the target environment and assign a custom security role.

5

Authenticate inside Jira

Enter the Organization URL, Tenant ID, Client ID, and Client Secret Value in the app admin page and save the connection.

6

Create Smart Connected Items

Choose display-only, one-way, or two-way behavior; configure field mappings; and enable optional status, comment, and attachment sync where needed.

Real Jira admin screenshot showing the configured Smart Connected Items list and latest sync status.

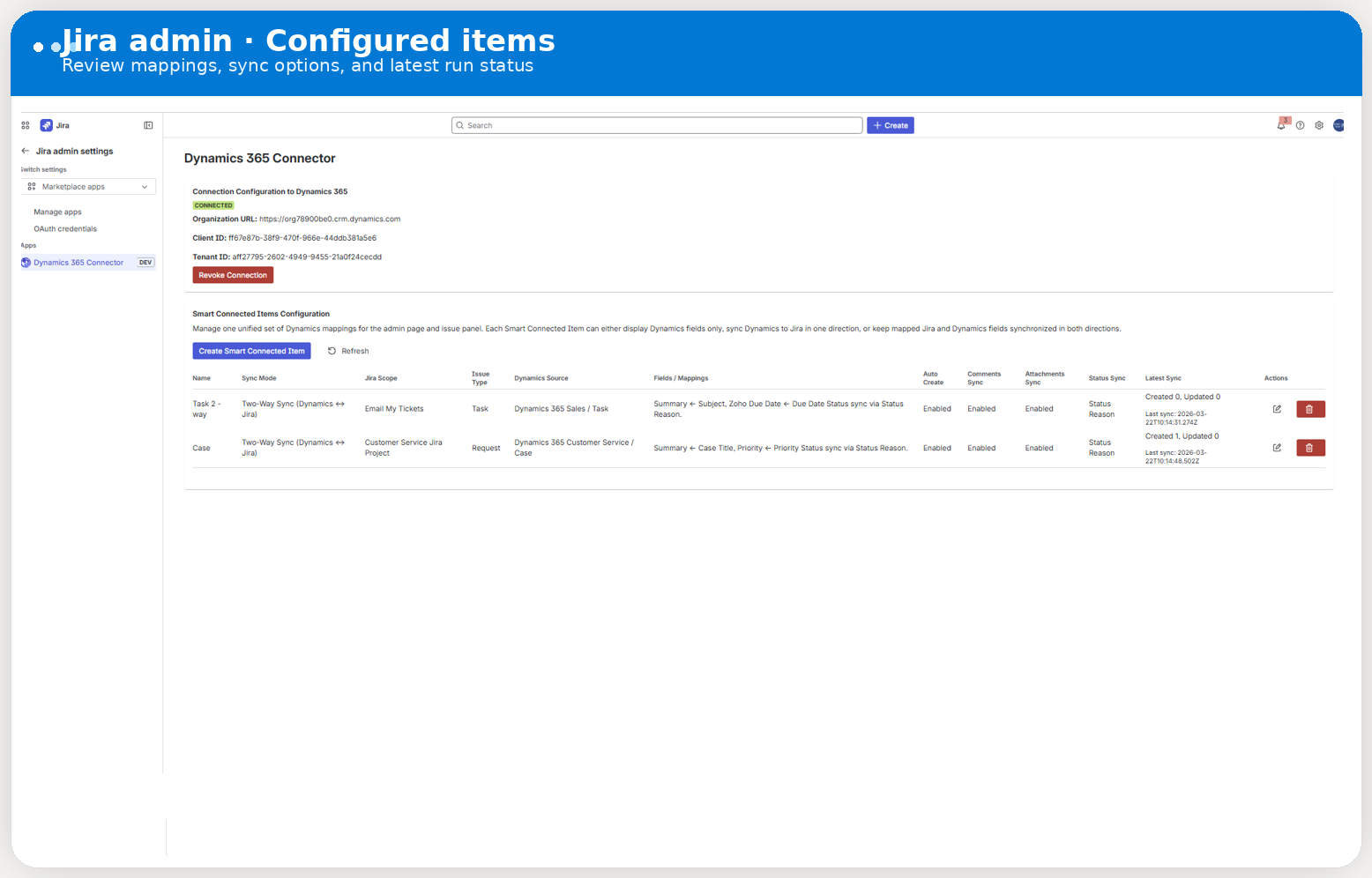

Real Jira admin screenshot of the configured items dashboard after a successful connection. This is the operational control surface where admins review Smart Connected Items, sync options, and recent run state.

Current sync model in this build

The scheduled trigger runs every five minutes. It creates Jira issues for new Dynamics records when auto-create is enabled, and it applies Dynamics -> Jira field, status, comment, and attachment changes for already linked records.

Jira -> Dynamics updates are event-driven. Jira issue update events push field and status changes. Jira comment events push comments. Jira attachment creation events push attachments.

Where configuration is stored

Dynamics connection settings are stored in Forge app storage.
The client secret is stored in Forge secret storage when the platform supports it.
Smart Connected Item definitions and issue-to-record link registrations are stored in Forge app storage.

Where visible record evidence appears

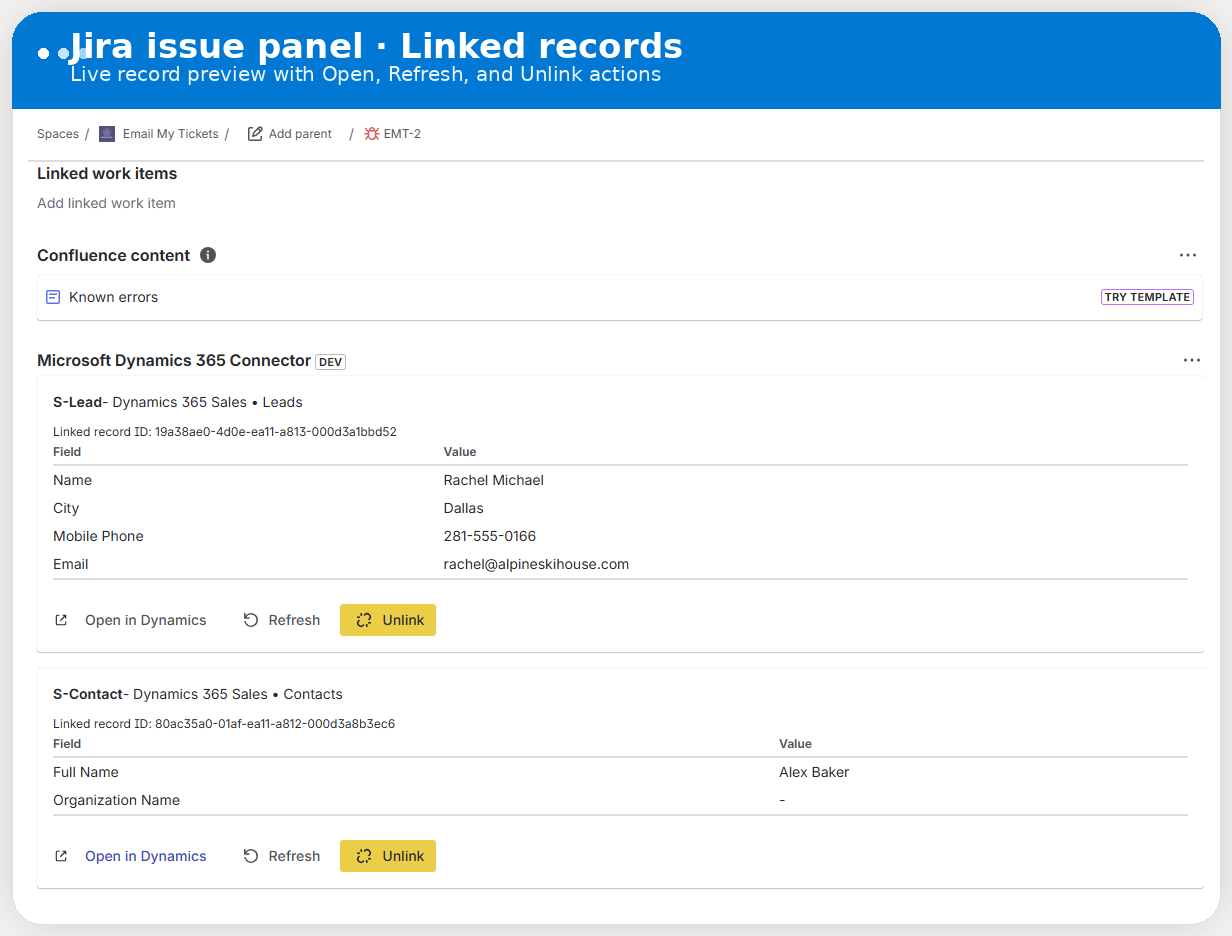

Jira shows the issue panel with the linked record preview.
Dynamics can show a connector-managed note on the timeline that names the Jira issue and its URL.
Comments and attachments sync through Dataverse annotations.

Display-only Smart Connected Item

A manual, read-focused mapping that lets Jira users link a Dynamics record in the issue panel and view selected fields. It does not create issues or run scheduled synchronization.

Synchronized Smart Connected Item

A one-project, one-issue-type automation mapping that can create Jira issues from Dynamics and synchronize fields, status, comments, and attachments depending on the options you enable.

Auto-managed link

A link created by the scheduled automation. Jira users can open the Dynamics record from the issue panel, but they cannot unlink or replace it manually.

Manual link

A link created from the Jira issue panel. Jira users can refresh the linked record preview and unlink it later. Manual links also participate in future scheduled synchronization for synchronized Smart Connected Items.

Who should perform the installation

The installation should be completed by a Jira site administrator or another Atlassian administrator who is allowed to install apps for the target cloud site.

Open Atlassian Marketplace and locate Microsoft Dynamics 365 Connector for Jira.
Select the target Jira Cloud site.
Approve the app installation and review the requested Jira scopes.
Open Jira administration and navigate to the connector admin page.

What the installation gives you

A Jira admin page for Microsoft authentication and Smart Connected Item setup.
A Jira issue panel where users can search, link, refresh, and open Dynamics records.
A scheduled integration job that runs every five minutes.
Jira event handlers that push issue changes, comments, and attachments to Dynamics.

Stage	Typical responsible admin	Why that level is needed
Install the app in Jira Cloud	Atlassian site administrator	Marketplace app installation is typically restricted to site administrators.
Create the Entra app registration and secret	Microsoft Entra admin with app-registration authority, commonly Cloud Application Administrator	Needed to create and manage the confidential application identity used by the connector.
Create the Dataverse application user and assign its role	Power Platform or Dynamics administrator with environment administration rights	Needed to add the application user to the environment and grant the required Dataverse access.
Authenticate and configure Smart Connected Items	Jira administrator	Needed to open the connector admin page and define project-specific Jira behavior.

Best practice

Install the app first, but do not create Smart Connected Items until the Microsoft Entra app, Dataverse application user, and custom security role are ready. That keeps the first authentication pass clean and avoids partial configuration.

1

Open Microsoft Entra ID

In the Azure portal, open Microsoft Entra ID, then go to App registrations and create a new registration.

2

Use a single-tenant registration

For a single-customer deployment, use Accounts in this organizational directory only. The connector authenticates with the client credentials flow, so it does not need an interactive browser sign-in for end users.

2A

No user-facing redirect is required for this connector flow

This connector does not sign users into Microsoft from the browser. The authentication happens server to server by using the tenant ID, client ID, and secret value stored in the Jira admin page.

3

Capture the two identifiers you will need later

Copy the Application (client) ID and Directory (tenant) ID. The Jira admin page requires both values.

4

Use the correct Dataverse organization URL

The connector needs the base Dataverse URL for the target environment, for example https://org78900be0.crm.dynamics.com. Enter that exact organization URL in Jira later.

Authentication pattern used by this connector

This app uses a confidential client and requests a token from https://login.microsoftonline.com/<tenant-id>/oauth2/v2.0/token with the scope <organization-url>/.default. The Dataverse application user and security role define what the app can do inside the environment.

Values you collect for the Jira admin page

Organization URL: for example https://<yourorg>.crm.dynamics.com
Tenant ID: the Microsoft Entra directory identifier
Client ID: the application identifier of the app registration
Client Secret Value: the secret value copied when it is created

Token scope used by this connector

The connector authenticates with client credentials and requests the scope https://<yourorg>.crm.dynamics.com/.default.

The app then acts inside Dataverse through the application user that you create in the target Power Platform environment.

1

Create the app registration

In Azure Portal, open Microsoft Entra ID, go to App registrations, create a new registration, use a single-tenant app for this customer environment, and leave the redirect URI empty because this connector does not use an interactive browser sign-in flow.

2

Create the client secret and capture the secret value

Open Certificates & secrets, create a new client secret, and copy the value immediately. Microsoft only shows the value one time.

3

Add Dynamics CRM API permission and grant admin consent

In API permissions, add the Dynamics CRM API permission that your Dataverse environment requires, then grant admin consent. The standard Dataverse application setup pattern commonly uses user_impersonation in Microsoft guidance.

4

Create the Dataverse application user in the correct environment

Open https://admin.powerplatform.microsoft.com, select the environment that hosts the target records, open Users + permissions, create a new Application user, and bind it to the app registration.

5

Assign a dedicated least-privilege role

Assign a custom Dataverse security role that grants the connector only the table and note access it needs for the entities you map. Avoid broad administrative roles unless you intentionally want that scope.

Privilege area	Recommended baseline	Why it matters
Mapped business tables	Organization-level Read, plus Write when two-way updates are enabled	Required to browse source records and update mapped fields or status values.
Notes and attachments	Create, Read, Write, Delete, Append, Append To on `annotation`	Required for comment sync, attachment sync, and the connector-managed Jira link note.
Metadata discovery	Read only when you need the admin page to browse entities and fields dynamically	Keeps the role smaller when metadata discovery is not needed.

Quick validation checklist

The Tenant ID, Client ID, and Client Secret Value can obtain a token successfully.

The Dataverse Web API answers without a 401 or 403 response.

The application user exists in the correct environment.

The assigned security role can read the entities that your Smart Connected Items target.

Common Entra and Dataverse setup failures

401 or 403: admin consent is missing, the application user is absent, or the role is too narrow.

No results in record search: the application user cannot read that Dataverse table.

Token audience mismatch: the connector is not using the correct .default scope for the organization URL.

How to create it

Open the app registration.
Go to Certificates & secrets.
Create a new Client secret.
Copy the secret value immediately.

Important handling rules

The Microsoft portal shows the secret value only once.
The Jira admin page expects the secret value, not the secret ID.
When a secret expires, the connection will fail until the admin updates the stored value in Jira.
The connector stores the secret in Forge secret storage when the platform supports it.

A common setup mistake

Do not paste the secret identifier into Jira. The connector needs the actual secret value that Microsoft reveals one time after creation.

Why this step matters

The app registration alone is not enough. The target Dataverse environment must contain an application user linked to that app registration. This user becomes the identity that the connector uses inside Dynamics 365 / Dataverse.

Where to create it

Open the Power Platform admin center, select the target environment, open the users area, choose Application users, and create a new application user that points to the Microsoft Entra app registration.

1

Select the same environment that hosts the target records

The environment must be the one that contains the Cases, Tasks, Leads, Opportunities, or other Dataverse tables you want to connect.

2

Pick the app registration by client ID

Choose the application you created in Microsoft Entra. Dataverse then creates an application user tied to that client ID.

3

Assign a custom security role

Give the application user a role that grants the exact table-level access the connector needs. Do not assign overly broad administrative privileges unless you intentionally accept that risk.

Least-privilege recommendation

Create a custom Dataverse security role for the connector instead of using broad built-in roles. The goal is to let the connector read and update only the tables, notes, and files it needs.

Area	Recommended privileges	Why the connector needs it
Target business tables	Read, Write, Append To	Needed to read source records and update mapped fields or status values.
Activity / note table (`annotation`)	Create, Read, Write, Delete, Append, Append To	Needed for comments sync, attachments sync, and the visible Jira link note.
Case resolution flow	Privileges required to close or cancel `incident` records	Needed when a Jira issue transitions to a closing state and the linked record is a Dynamics Case.
Lookup tables referenced by mappings	Read	Needed when mapped fields depend on related Dataverse values.

Entity coverage

Include the exact Dataverse tables your Smart Connected Items will target. For example, Customer Service deployments commonly include incident, while Sales deployments might include task, lead, or opportunity.

Permission scope choice

Many customers use organization-level privileges for service integrations so the connector can see the records it needs across teams and business units. If your governance model requires a narrower scope, validate all target entities carefully before go-live.

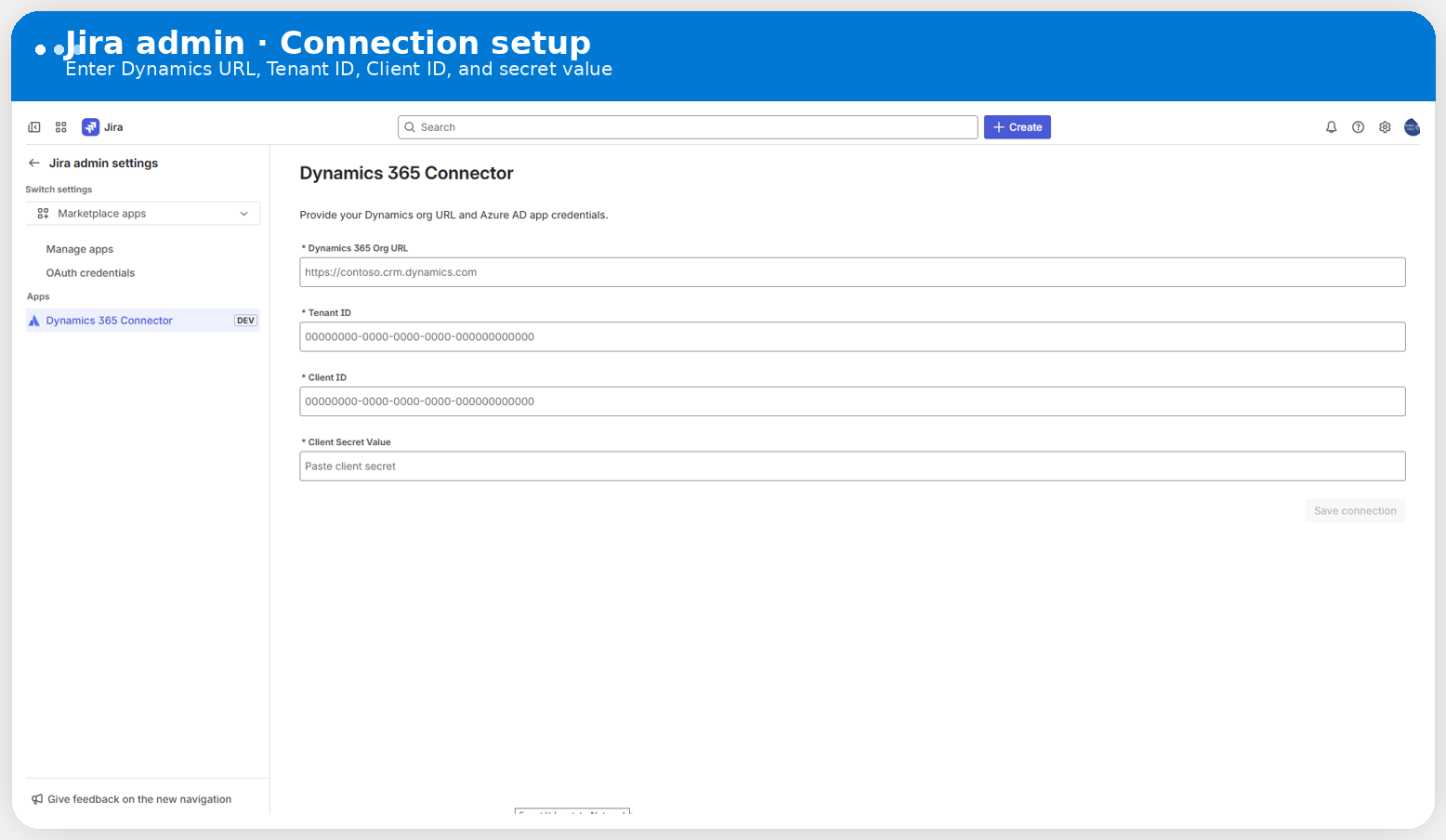

Real Jira admin screenshot showing the Dynamics 365 Connector connection setup screen with Organization URL, Tenant ID, Client ID, and Client Secret Value.

Real Jira admin screenshot of the connection setup form. This is the exact screen where the admin enters the Dynamics organization URL, Tenant ID, Client ID, and Client Secret Value.

Values to enter

Organization URL: the Dataverse base URL, such as https://org.crm.dynamics.com
Tenant ID: the Microsoft Entra directory identifier
Client ID: the application identifier of the app registration
Client Secret Value: the secret value copied when the secret was created

What the app does after saving

Requests an OAuth token for the Dataverse organization.
Discovers Dynamics modules and Dataverse entities that can be browsed in the admin page.
Loads metadata so the admin can map Dynamics fields to Jira fields.
Stores the connection settings for future scheduled sync and Jira event handlers.

Connection validation

If authentication fails, verify the organization URL first, then verify the tenant ID, client ID, and secret value. In practice, an incorrect URL or a copied secret ID is more common than a code problem.

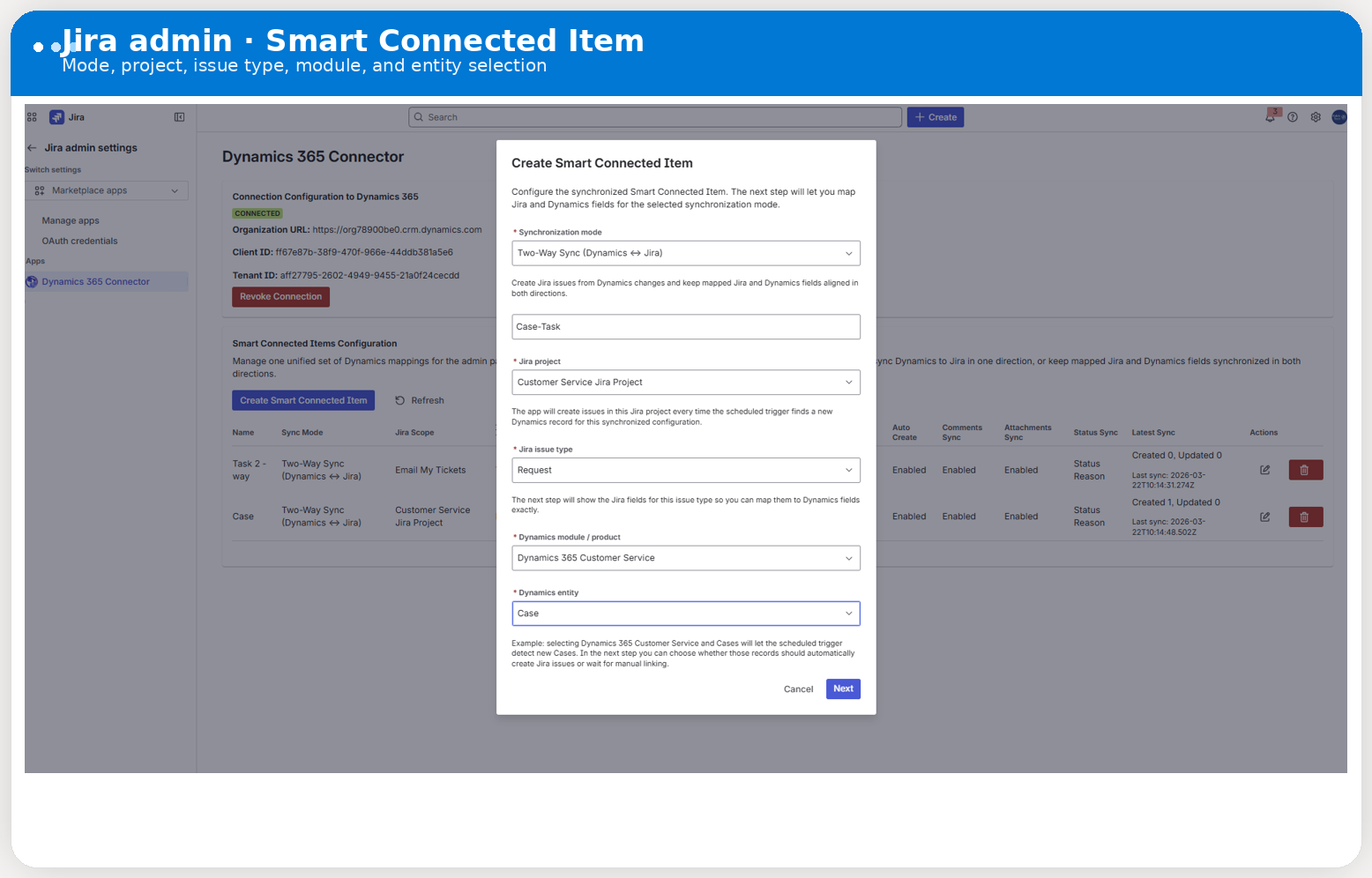

Real Jira admin screenshot showing Smart Connected Item step 1 with synchronization mode, Jira project, Jira issue type, Dynamics module, and Dynamics entity.

Real Jira admin screenshot of Smart Connected Item creation step 1. The admin chooses the synchronization mode, Jira scope, Dynamics module or product, and Dynamics entity before moving to the mapping step.

Display-only item

Use this when users only need to search and manually link a Dynamics record from Jira, then view selected fields in the issue panel. No automatic issue creation or scheduled field synchronization runs for this mode.

Synchronized item

Use this when one Jira project and one Jira issue type should be connected to one Dynamics module and one Dataverse entity. This path supports issue creation, field mappings, status sync, comment sync, and attachment sync depending on the options you enable.

1

Choose the sync mode

Select None (Display Only), One-Way Sync (Dynamics -> Jira), or Two-Way Sync (Dynamics <-> Jira).

2

Select the Jira side

Choose one Jira project and one Jira issue type. Synchronized items are intentionally scoped to one project and one issue type so the mapping behavior stays predictable.

3

Select the Dynamics side

Choose one Dynamics module or product area and one Dataverse entity, such as Dynamics 365 Customer Service (Case) or Dynamics 365 Sales (Task).

4

Configure automation options

Decide whether the connector should auto-create Jira issues, synchronize mapped fields, synchronize status, synchronize comments, and synchronize attachments.

Capability	Display Only	One-Way Sync	Two-Way Sync
Manual search and link from the issue panel	Yes	Yes	Yes
Scheduled auto-create Jira issue from Dynamics	No	Optional	Optional
Dynamics -> Jira mapped field sync	No	Yes	Yes
Jira -> Dynamics mapped field sync	No	No	Yes
Status sync when enabled	No	Yes, both directions	Yes, both directions
Comments sync when enabled	No	Yes, both directions	Yes, both directions
Attachments sync when enabled	No	Yes, both directions	Yes, both directions

Important behavior detail

Field mappings follow the one-way or two-way mode. Status, comments, and attachments are different: once those options are enabled for a synchronized item, the connector allows both-direction sync for those areas, with status using a most-recent-side-wins approach after link initialization.

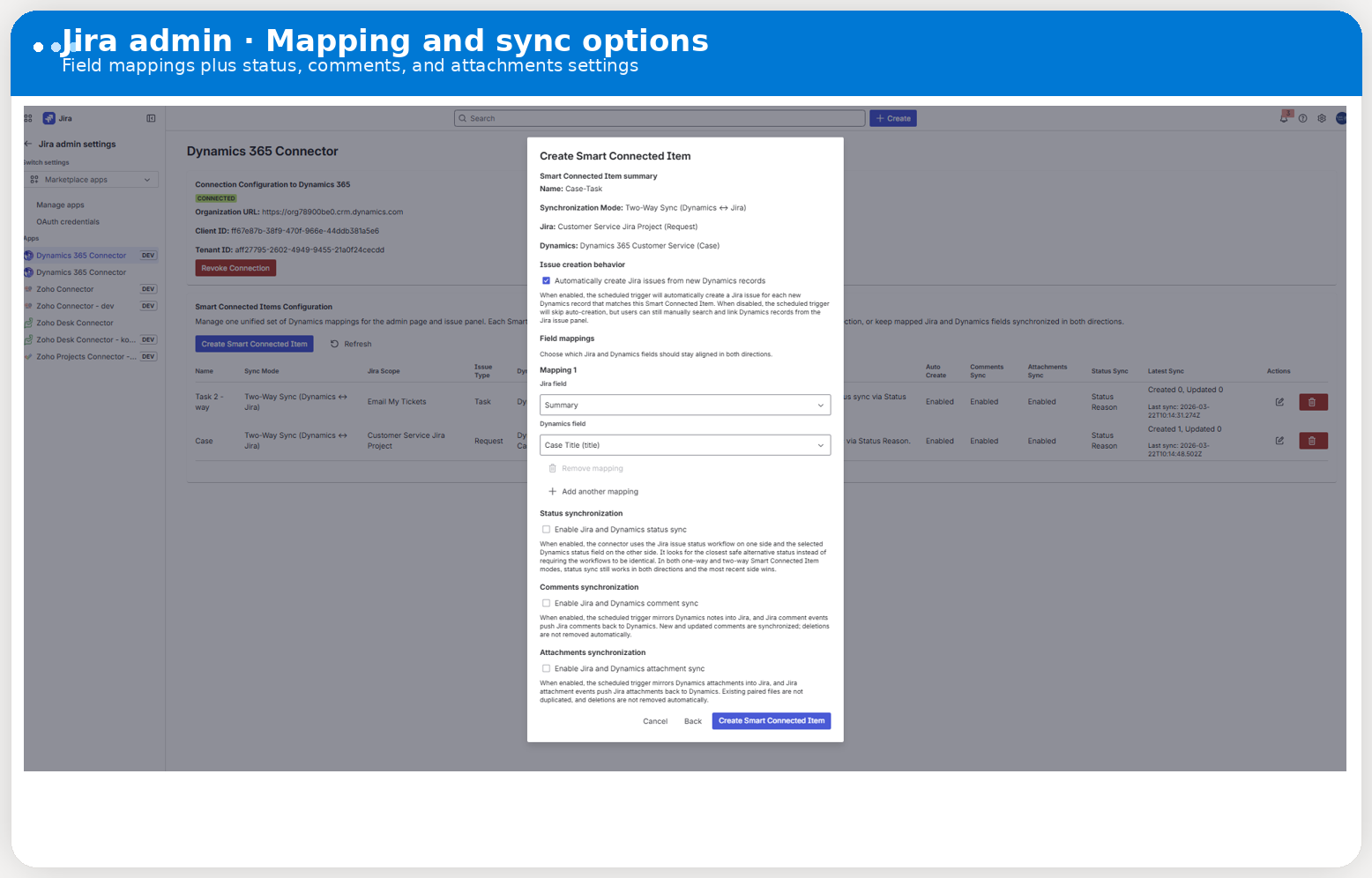

Real Jira admin screenshot showing Smart Connected Item step 2 with issue creation behavior, field mappings, status sync, comments sync, and attachments sync options.

Real Jira admin screenshot of Smart Connected Item step 2. This is where the admin enables automatic issue creation, defines field mappings, and turns status, comments, and attachments sync on or off.

How mappings work

A mapping pairs one Dynamics field with one Jira field. In one-way mode the connector only writes from Dynamics to Jira. In two-way mode the connector also pushes Jira issue field changes back to Dynamics using Jira update events.

When mappings are optional

You can create a synchronized Smart Connected Item with no field mappings if the goal is status-only synchronization, comment-only synchronization, attachment-only synchronization, or manual linking without auto-create.

Supported Jira field type	Examples	Notes
String	Summary, short text custom fields	Maps plain text values.
ADF / description	Description	Connector converts between Dataverse text and Jira rich text format.
Number	Numeric custom fields	Useful for quantities, estimates, counters, or score fields.
Date / date time	Due date, custom date fields	Validate time zone expectations before production rollout.
Boolean	Checkbox style fields	Stored as true or false.
String array	Labels	Supports multi-value text lists.
Priority	Issue priority	Requires sensible value matching between systems.
Option / option array	Select list fields	Used for single-select and multi-select option fields.
Component / version fields	Components, fix versions, affects versions	Supported where the Jira field type is implemented by the connector.

Known unsupported pattern

Some Jira create fields can appear for reference in the admin experience even when the connector does not yet implement their sync behavior. User picker and user-array style mappings usually require extra identity matching logic and should be tested carefully before being promised to end users.

How it behaves

When status sync is enabled, the connector compares Jira and Dynamics state changes and tries to match equivalent or near-equivalent statuses instead of requiring identical workflow names. After the initial baseline is established, the most recently changed side wins.

What makes it smart

The connector uses transition and label heuristics so a Jira issue moving to Done, Resolved, or Cancelled can still map to an appropriate Dynamics close state even when the names are not exact duplicates.

Direction	How the connector writes the update	Notes
Dynamics -> Jira	Uses Jira transitions	The issue must have an available workflow transition to the target state.
Jira -> standard Dataverse entities	Updates the configured state or status field	Used for records that can be updated with a normal Dataverse write.
Jira -> Dynamics Case (`incident`)	Uses the dedicated case close or cancel action path	Cases are special because resolve and cancel are action-driven, not just a plain field update.

Admin recommendation

Test a full status cycle with one sample record before rollout, especially for Cases in Customer Service. Closing a Case may require a valid resolution type and resolution text in the target environment.

Dynamics -> Jira

Scheduled sync reads eligible Dataverse notes and posts them into Jira as issue comments for linked records.

Jira -> Dynamics

Jira comment events create corresponding Dataverse notes so the connected Dynamics record timeline reflects the latest Jira discussion.

Connector-managed notes are excluded

The visible Jira link note that the connector creates in Dynamics is intentionally excluded from comment sync, so the app does not pollute Jira with system notes that only exist to show linkage.

Dynamics -> Jira attachments

The scheduled sync can pull eligible note attachments from Dataverse and add them to the linked Jira issue.

Jira -> Dynamics attachments

Jira attachment creation events send new files to Dynamics so they appear on the connected record.

Attachment size limit

The current connector build skips files larger than 10 MB per attachment. This protects the integration from common runtime and payload limits.

Platform	Permission or scope	Purpose
Forge	`storage:app`	Stores Dynamics connection settings, Smart Connected Items, and link registrations.
Forge	`read:jira-work` and `read:issue:jira`	Reads issue data, issue fields, comments, transitions, and project context.
Forge	`write:jira-work` and `write:issue:jira`	Creates issues, updates fields, transitions issues, posts comments, and uploads attachments.
Forge	`read:jira-user`	Supports user-related Jira reads that the app needs during sync and panel rendering.
Dataverse	Custom application-user security role	Controls which entities, notes, files, and close actions the connector can perform.

Security model summary

Jira permissions come from the Forge manifest and the app installation. Microsoft permissions come from the Dataverse application user and its assigned custom security role. That separation is important when you review audit, compliance, and least-privilege requirements.

Real Jira issue panel screenshot showing linked Dynamics records with Open in Dynamics, Refresh, and Unlink actions.

Real Jira issue panel screenshot showing linked Dynamics records, record details, and the user actions available in Jira for manual links.

What the user sees

The Smart Connected Items available for the current Jira project.
The linked Dynamics record preview when a record is already connected.
An Open in Dynamics action that opens the source record directly.
A status sync indicator when status synchronization is enabled for that item.

What determines visibility

The panel only shows Smart Connected Items that apply to the current Jira project. A synchronized item is project-scoped, so users do not see irrelevant connectors for unrelated projects.

1

Search and link

When a Smart Connected Item allows manual selection, the user can search Dynamics records directly from the issue panel and connect the correct record to the current Jira issue.

2

Refresh

A manually linked record can be refreshed from the panel to pull the latest visible Dynamics data into Jira without waiting for the next scheduled cycle.

3

Unlink

A manual link can be removed from the panel. The connector then deletes its stored link reference and also attempts to remove the connector-managed Jira link note from Dynamics.

What unlink does not do

Unlinking removes the connector relationship. It does not delete the Jira issue and it does not delete the Dynamics business record itself.

When they appear

Auto-managed links appear when a synchronized Smart Connected Item has auto-create enabled and the scheduled connector creates a Jira issue for a new Dynamics record.

Why the panel treats them differently

These links are owned by the automation layer. Users can open the Dynamics record, but they cannot manually replace or unlink the record from the issue panel.

Jira action	Dynamics effect	Condition
Edit a mapped issue field	Updates the mapped Dataverse field	Only for two-way synchronized items with a link in place
Change issue status	Updates or closes the Dynamics record status	Status sync must be enabled
Add a Jira comment	Creates a Dataverse note	Comments sync must be enabled
Add a Jira attachment	Creates a Dataverse attachment-backed note	Attachments sync must be enabled and the file must be within size limits

What the connector writes

The connector creates or updates a dedicated Dataverse note that clearly states the record is linked to a Jira issue. The note includes the Jira key, Jira URL, issue ID, Smart Connected Item name, and whether the link was created automatically or manually.

Why it exists

This gives Dynamics users an immediate visual signal in the record timeline without requiring a custom Dataverse table, custom form field, or manual admin customization in the target environment.

Important limitation

The note is a visibility flag, not the connector's master source of truth. The real link state is still tracked by the app configuration and link storage on the Forge side.

The Jira admin page cannot authenticate to Dynamics

Verify the Dataverse organization URL, Tenant ID, Client ID, and Client Secret Value. Confirm that the app registration exists in the same tenant and that the Dataverse environment contains an application user for that registration.

Smart Connected Items load, but no Jira issues are auto-created

Confirm the item is synchronized, auto-create is enabled, and the target Dynamics records were created after the monitoring baseline was established. Also verify that the mapped Jira issue type can be created with the fields currently configured.

Fields or status changes from Dynamics take time to appear in Jira

Dynamics -> Jira updates are scheduled, not real-time. The scheduled trigger runs every five minutes, so changes can appear on the next cycle instead of instantly.

Jira comments or attachments are not appearing in Dynamics

Confirm that the relevant sync option is enabled, the issue is linked to a supported synchronized item, and the Dataverse application user can create notes and attachments on the target record type.

Closing a Jira issue does not resolve the Dynamics Case

Validate the linked entity is really incident, that status sync is enabled, and that the Dataverse security role allows Case close operations. Also test whether the Dynamics environment requires a specific resolution type or resolution text for Case closure.

Scheduled Dynamics polling

Dynamics -> Jira updates and auto-create rely on a five-minute scheduled trigger, so those changes are not instant.

10 MB attachment ceiling

Attachments larger than 10 MB are intentionally skipped.

No delete mirroring

Comment deletions and attachment deletions are not mirrored between Jira and Dynamics in this build.

Synchronized item scope

Each synchronized Smart Connected Item maps one Jira project and one Jira issue type to one Dynamics module and one Dataverse entity.

Some Jira field types remain unsupported

Certain complex Jira field types, especially identity-driven user fields, may still require future implementation work or environment-specific testing.

Dynamics link note is informational

The visible Jira link note is not the underlying relationship store. It is a user-facing marker.

Atlassian Forge Jira events reference Atlassian Forge manifest reference Atlassian app management reference Microsoft Learn: server-to-server authentication for Dataverse Microsoft Learn: manage Dataverse application users Microsoft Learn: privileges required for customization Microsoft Learn: Incident (Case) entity reference Microsoft Learn: IncidentResolution entity reference

Quick start in six steps

Install the app

Register a confidential Microsoft Entra app

Create a client secret

Create the Dataverse application user

Authenticate inside Jira

Create Smart Connected Items

How the connector works

Current sync model in this build

Where configuration is stored

Where visible record evidence appears

Key terms used in this guide

Display-only Smart Connected Item

Synchronized Smart Connected Item

Auto-managed link

Manual link

Install the app from Atlassian Marketplace

Who should perform the installation

What the installation gives you

Best practice

Create the Microsoft Entra app registration

Open Microsoft Entra ID

Use a single-tenant registration

No user-facing redirect is required for this connector flow

Capture the two identifiers you will need later

Use the correct Dataverse organization URL

Authentication pattern used by this connector

Azure / Microsoft Entra setup deep dive

Values you collect for the Jira admin page

Token scope used by this connector

Create the app registration

Create the client secret and capture the secret value

Add Dynamics CRM API permission and grant admin consent

Create the Dataverse application user in the correct environment

Assign a dedicated least-privilege role

Create the client secret

How to create it

Important handling rules

A common setup mistake

Create the Dataverse application user

Why this step matters

Where to create it

Select the same environment that hosts the target records

Pick the app registration by client ID

Assign a custom security role

Build the Dataverse security role

Least-privilege recommendation

Entity coverage

Permission scope choice

Authenticate the connector in the Jira admin page

Values to enter

What the app does after saving

Connection validation

Create Smart Connected Items

Display-only item

Synchronized item

Choose the sync mode

Select the Jira side

Select the Dynamics side

Configure automation options

Modes and behavior matrix

Important behavior detail

Field mapping rules

How mappings work

When mappings are optional

Known unsupported pattern

Status sync

How it behaves

What makes it smart

Admin recommendation

Comments sync

Dynamics -> Jira

Jira -> Dynamics

Connector-managed notes are excluded

Attachments sync

Dynamics -> Jira attachments

Jira -> Dynamics attachments

Attachment size limit

Permission and scope reference

Security model summary
